LYFOOCRANE BARGE CONNECTION WINCHES

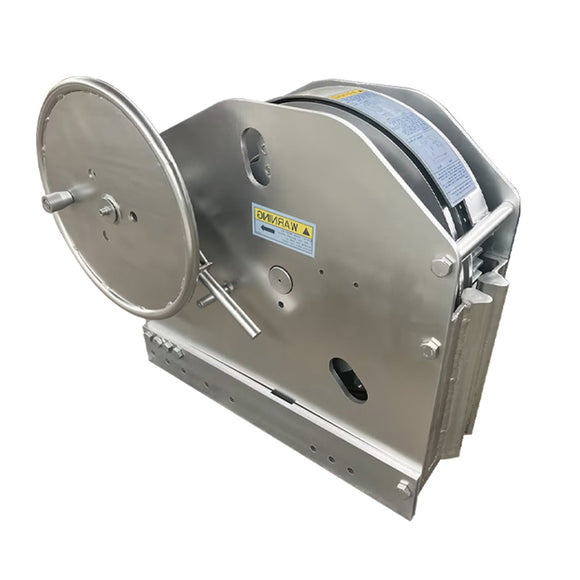

40-Tonne Ultimate-Capacity Manual Barge Connection Winch
A fully enclosed single-layer manual winch for barge coupling, temporary mooring and line tensioning on inland waterways and work vessels.
Designed Around the Working Duty
A fully enclosed single-layer manual winch for barge coupling, temporary mooring and line tensioning on inland waterways and work vessels. Final gearing, drum, braking, controls and protection are configured for the project.
Consistent winding geometry.
Redundant mechanical engagement.
Improved resistance to marine corrosion.
Faster unloaded take-up and release.
Reference Specifications
| Model | Published Ultimate Capacity | Drum / Roller Capacity | Machine Weight | Drum Type | Holding System |
|---|---|---|---|---|---|
| PJY-6-25-1 | 40 t | 7.62 m | 226 kg | Fully enclosed, single layer | Double pawl + spring assembly |
Typical Applications
Barge fleets · inland towing · temporary mooring · workboats · remote power-free operations
Engineering Note
“Ultimate capacity” is not a working load limit. The safe rated pull requires an approved design factor and test basis. No reliable machine-weight value is available for the PJY-6-40-1 reference row and it must be confirmed before quotation. Claims of 50% faster operation or 300% rope life were not retained because no test method is provided.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
