LYFOOCRANE HIGH-CAPACITY HAND WINCHES

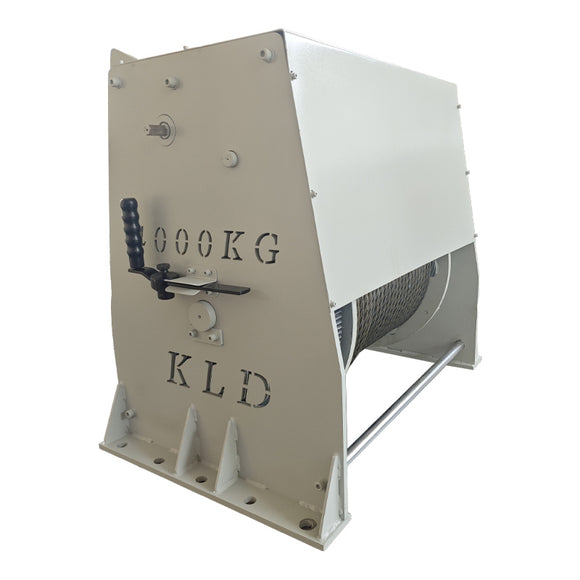

4,000 kg Manual Marine Mooring Winch
A compact hand-cranked mooring winch with two-stage gearing, ratchet and band braking, and long-rope storage for power-free vessel operations.
Designed Around the Working Duty
A compact hand-cranked mooring winch with two-stage gearing, ratchet and band braking, and long-rope storage for power-free vessel operations. Final gearing, drum, braking, controls and protection are configured for the project.
High manual mechanical advantage.
Ratchet plus manually controlled band brake.
Reference capacity of 100 m.
Weather-resistant coating by project.
Reference Specifications
| Rated Pull | Gear Ratio | Wire Rope | Drum Capacity | Machine Weight | Dimensions |
|---|---|---|---|---|---|
| 4,000 kg | 19:1 | 18 mm | 100 m | 285 kg | 904 × 715 × 842 mm |
Typical Applications
Workboats · fishing vessels · barges · pontoons · remote and temporary mooring
Engineering Note
Drum capacity varies by model; the 100 m value applies to this 4,000 kg reference configuration and must be confirmed on the approved drawing. Mooring loads are dynamic; rated pull, brake holding load and minimum breaking load must be defined separately.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
