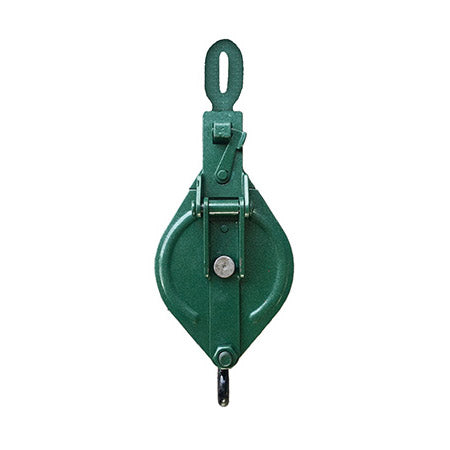

36-A K-Type Heavy-Duty Single-Sheave Hook Block
Product Overview
The 36-A K-Type heavy-duty pulley block is designed for lifting and pulling with wire rope or other suitable rope. Its open-sided construction allows the rope to be installed from the side, while the cast-steel sheave and lubricated solid bronze bushing provide durable and smooth operation.
Wire Rope Handling
Suitable for lifting and pulling applications using wire rope or rope.
Open-Sided Design
The rope can be inserted from the side, reducing installation time and
effort.
Cast-Steel Sheave
A durable cast-steel sheave supports heavy-duty operating conditions.
Lubricated Bronze Bushing
The solid bronze bushing includes a lubrication port for easier routine
maintenance.
Technical Specifications
| Size (in) |
Item No. | Safe Working Load (ton) |
Wire Rope Dia. (mm) |
Quantity / Case (pcs) |
Net / Gross Weight (kg) |
Carton Size (cm) |
|---|---|---|---|---|---|---|
| 3 | SL-MS01-01 | 0.5 | 8 | 10 | 13 / 14 | 32 × 28 × 19 |
| 4 | SL-MS01-02 | 1 | 10 | 5 | 23 / 24 | 32 × 31 × 25 |
| 5 | SL-MS01-03 | 1.5 | 13 | 5 | 17 / 18 | 41 × 38 × 16 |
| 6 | SL-MS01-04 | 2 | 16 | 2 | 22 / 23 | 47.5 × 26 × 18 |
| 7 | SL-MS01-05 | 3 | 19 | 2 | 19.5 / 20 | 53 × 21 × 21 |
| 8 | SL-MS01-06 | 4 | 22 | 2 | 24 / 25 | 58 × 23 × 24 |
| 10 | SL-MS01-07 | 5 | 25 | 1 | 18 / 19 | 67 × 14 × 28 |
| 12 | SL-MS01-08 | 6 | 28 | 1 | 24.5 / 25.5 | 79 × 16 × 34 |
All model numbers, capacities, rope diameters and packaging data are reproduced from the source parameter table.
