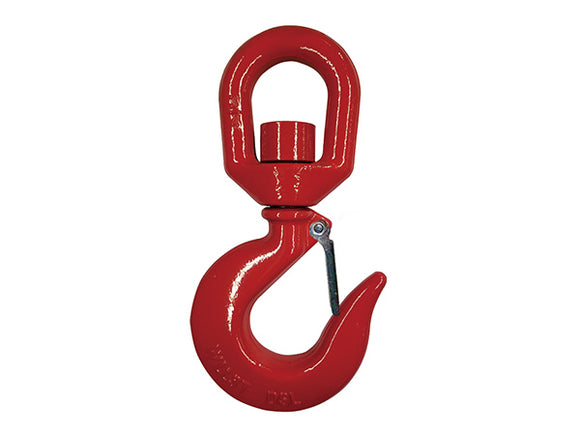

322A / 322C Swivel Hook
Available in 322A alloy steel and 322C carbon steel versions. Please refer to the table below for working load limits, breaking loads, dimensions, and weights.

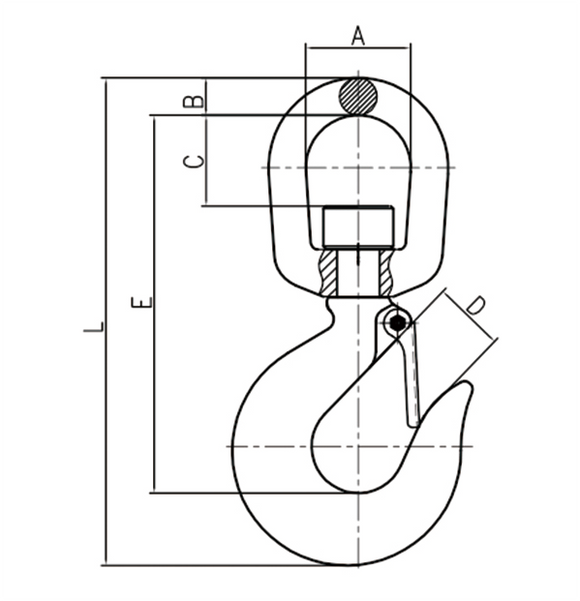

| Item No. | 322A Alloy Steel | 322C Carbon Steel | Dimensions (mm) | Weight (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| WLL (t) | Breaking Load (t) | WLL (t) | Breaking Load (t) | A | B | C | D | E | L | ||
| SL-H1025 | 1 | 4 | 0.75 | 3.75 | 31.5 | 10 | 24.5 | 24 | 114 | 143 | 0.45 |
| SL-H1025 | 2 | 8 | 1.5 | 7.5 | 45 | 16 | 39 | 27 | 148 | 191 | 1.2 |
| SL-H1025 | 3 | 12 | 2 | 10 | 45 | 16 | 39 | 30 | 162 | 209 | 1.35 |
| SL-H1025 | 5 | 20 | 3 | 15 | 45 | 20 | 40.5 | 38 | 188 | 245 | 2.2 |
| SL-H1025 | 7 | 28 | 5 | 25 | 63 | 26 | 56 | 48 | 242 | 315 | 4.8 |
| SL-H1025 | 11 | 44 | 7.5 | 37.5 | 69 | 29 | 60 | 59 | 280 | 366 | 7.5 |
| SL-H1025 | 15 | 60 | — | — | 79 | 32 | 62 | 55 | 332 | 431 | 10.6 |
| SL-H1025 | 22 | 88 | — | — | 105 | 40 | 108 | 81 | 427 | 543 | 21.4 |
| SL-H1025 | 30 | 120 | — | — | 105 | 40 | 96 | 100 | 466 | 596 | 32 |
Notes:
WLL = Working Load Limit.
Dimensions are measured in millimeters (mm).
“—” indicates that the specification is not provided or not available.
