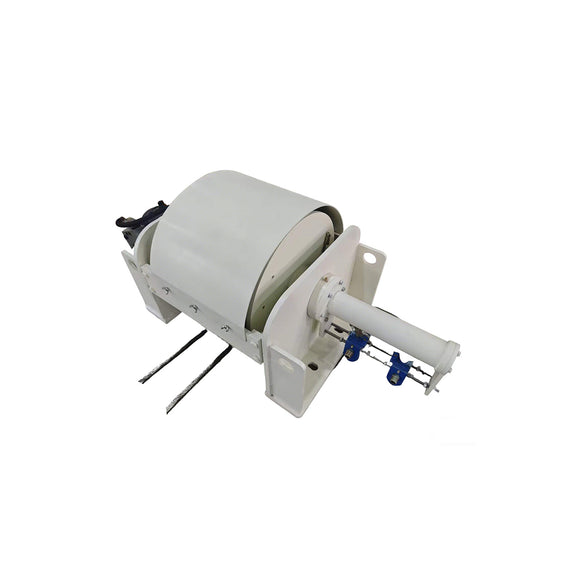

3,000 kg Hydraulic Dual-Rope Winch for Hatch and Door Control
A compact hydraulic dual-rope winch for coordinated movement of ship hatches, cabin doors and other two-point marine structures.
Designed Around the Working Duty
A compact hydraulic dual-rope winch for coordinated movement of ship hatches, cabin doors and other two-point marine structures. Final gearing, drum, braking, controls and protection are configured for the project.
High starting torque and adjustable motion.
Two working lines from one compact assembly.
High torque in a space-efficient package.
Project-set end-position references.
Reference Specifications
| Rated Pull / Lift | Wire Rope | Rope Speed | Dimensions |
|---|---|---|---|
| 3,000 kg | 14 mm | 5 m/min | 1,200 × 538 × 532 mm |
Typical Applications
Ship hatch covers · cabin doors · offshore machinery · port equipment · paired structural movement
Engineering Note
Two ropes driven by one winch do not automatically provide equal linear travel. Drum geometry, reeving, rope stretch, friction and unequal loads can cause skew. Specify the permitted position difference and add feedback or mechanical equalization where required.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
