LYFOOCRANE ELECTRIC-MANUAL MARINE WINCHES

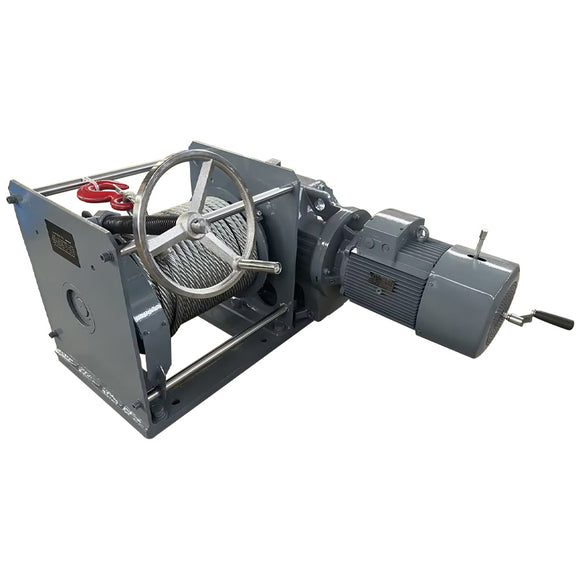

3,200 kg Marine Winch with Electric Drive and Manual Backup
A compact deck winch combining a geared electric drive, electromagnetic motor brake, manual brake and hand-crank backup.
Designed Around the Working Duty
A compact deck winch combining a geared electric drive, electromagnetic motor brake, manual brake and hand-crank backup. Final gearing, drum, braking, controls and protection are configured for the project.
Powered operation with backup input.
Motor brake plus manually operated brake.
Compact hard-tooth gear arrangement.
Manual movement for defined emergencies.
Reference Specifications
| Rated Load | Motor | Line Speed | Output Torque | Gear Ratio | Output Speed | Wire Rope | Drum Capacity | Dimensions |
|---|---|---|---|---|---|---|---|---|
| 3,200 kg | 5.5 kW | 11 m/min | 4,273 N·m | 123.93:1 | 12 rpm | 18 mm × 20 m | 18 m | 1,217 × 973 × 769 mm |
Typical Applications
Anchor handling · auxiliary mooring · deck machinery · marine construction · emergency line recovery
Engineering Note
The 1–20 tonne statement describes a product family, not the reference unit. The listed 410 kg constant-load value is undefined and has been omitted. Manual cranking a motor shaft under load needs a documented clutch or isolation method, allowable hand force and controlled brake-release procedure.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
