LYFOOCRANE DUAL-MODE INDUSTRIAL WINCHES

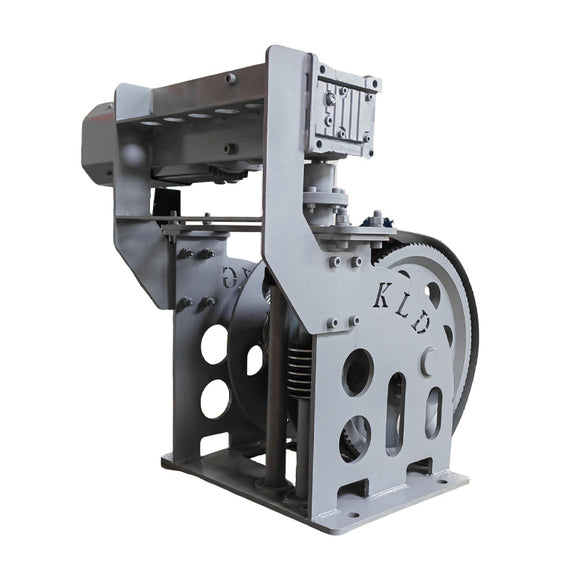

3,000 kg Electric Winch with Dual-Speed Manual Override
A modular electric winch that can be converted to hand-crank operation for controlled recovery or positioning when the normal power supply is unavailable.
Designed Around the Working Duty
A modular electric winch that can be converted to hand-crank operation for controlled recovery or positioning when the normal power supply is unavailable. Final gearing, drum, braking, controls and protection are configured for the project.
Normal powered lifting and pulling.
Backup movement through a crank interface.
Separate recovery and loaded-operation ratios.
Detachable drive for service or transport.
Reference Specifications
| Rated Capacity | Reduction Ratio | Lift Height | Wire Rope | Net Weight | Dimensions |
|---|---|---|---|---|---|
| 3,000 kg | 100:1 | 2 m | 14 mm | 161 kg | 675 × 709 × 637 mm |
Typical Applications
Industrial maintenance · field installation · emergency recovery · remote construction · machinery positioning
Engineering Note
Reducer output speed, output torque and total rope length require confirmation and have been omitted from this reference table. Worm gearing must not replace a certified load brake. Manual operation requires isolation of the electric drive and prevention of crank back-drive.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
