LYFOOCRANE ENGINEERED MOTION SYSTEMS

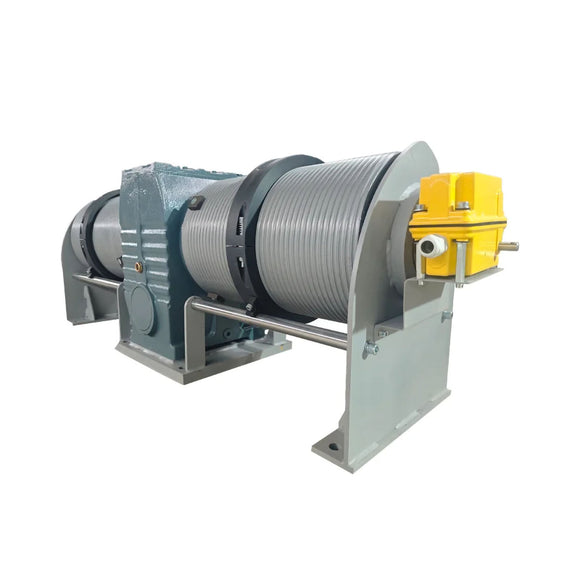

2,000 kg Servo Dual-Drum Winch with PLC Integration
A low-speed, high-torque winch platform for coordinated two-line lifting, positioning and test-rig motion.
Designed for Controlled Two-Rope Movement
Servo control and PLC integration support programmable speed profiles, repeatable sequences and communication with surrounding equipment. Two grooved drums with rope followers help manage winding during low-tension operation. A mechanical height limiter provides configurable upper and lower travel references.
Controlled acceleration, speed and stopping.
Coordinated rope handling from one frame.
Commands, feedback and sequence integration.
Adjustable operating-range references.
Reference Specifications
| Capacity | Motor | Output Torque | Ratio | Output Speed | Published Rope Speed |
|---|---|---|---|---|---|
| 2,000 kg | 5 kW servo | 2,794 N·m | 127.68:1 | 11 rpm | 10 m/min |
| Drum Rope Capacity | Machine Weight | Length | Width | Height |
|---|---|---|---|---|
| 31 m | 420 kg | 1,392 mm | 360 mm | 490 mm |
The source also lists 1.8 m/min in its quick-spec section. Confirm the approved rope speed before quotation or publication.
Applications
Research test rigs · precision equipment positioning · paired-load handling · automated machine integration · compact two-point lifting systems
Engineering Note
Common drum rotation does not by itself guarantee equal linear rope travel. Synchronization tolerance depends on groove geometry, rope layers, reeving, rope stretch and load distribution. Specify the permitted position difference and verify it during commissioning. Not intended for personnel lifting unless separately engineered and certified.
Request a Project Configuration
Send LYFOOCRANE the load at each rope point, travel, speed, duty cycle, synchronization tolerance, PLC interface and installation drawing.
