LYFOOCRANE MARINE ELECTRIC WINCHES

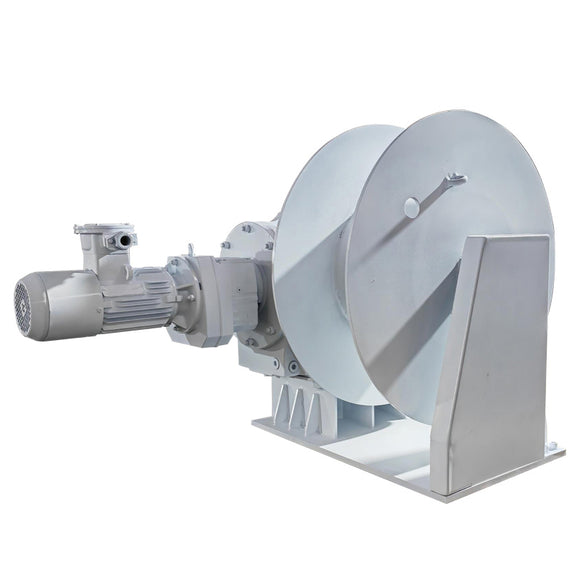

2,000 kg Marine Electric Towing and Mooring Winch
A welded-deck electric winch with a K-series geared motor, electromagnetic brake and project-specified marine protection for towing and mooring support.
Designed Around the Working Duty
A welded-deck electric winch with a K-series geared motor, electromagnetic brake and project-specified marine protection for towing and mooring support. Final gearing, drum, braking, controls and protection are configured for the project.
Efficient right-angle power transmission.
Automatic stopping when power is removed.
Rigid deck-mounted structure.
Coating and enclosure selected by environment.
Reference Specifications
| Reference Load | Motor | Published Line Speed | Output Torque | Dimensions |
|---|---|---|---|---|
| 2,000 kg | 3 kW | 8 m/min | 5,090 N·m | 1,018 × 1,313 × 1,130 mm |
Typical Applications
Workboats · fishing vessels · dock equipment · auxiliary towing · mooring-line handling
Engineering Note
The detailed reference configuration is rated at 2 tonnes; capacities up to 10 tonnes require separate model data and engineering approval. IP56 and fail-safe brake claims must be supported by component and complete-machine documentation. Towing and mooring require separate consideration of dynamic line loads, brake holding capacity and fleet angle.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
