LYFOOCRANE MARINE REELING SYSTEMS

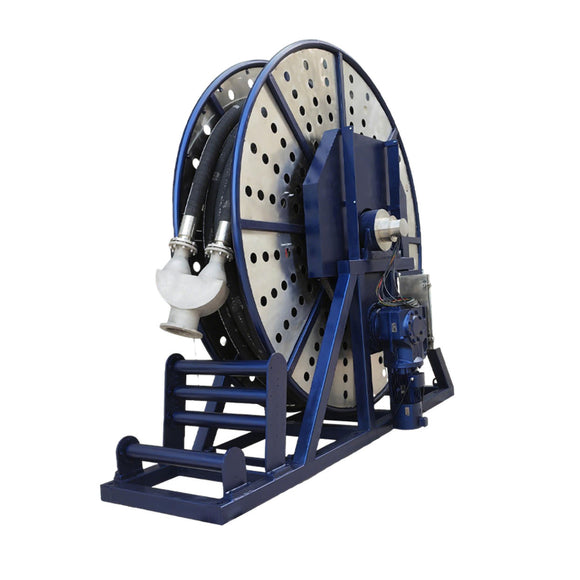

102 mm Marine Hose Drum Winch with VFD Control
A large dual-drum reeling system engineered for controlled storage and deployment of marine hose in vessel, dockside and offshore support applications.
Engineered for the Application
A large dual-drum reeling system engineered for controlled storage and deployment of marine hose in vessel, dockside and offshore support applications. Final drum geometry, drive, controls and protection are configured around the actual cable, rope or hose system.
Project-specific drum and mounting arrangement.
Adjustable reeling speed and controlled acceleration.
Up to 60 m per drum in the reference design.
Coating and enclosure selected for the environment.
Reference Specifications
| Rated Line Pull | Hose I.D. | Motor | Drum Speed | Gear Ratio | Output Torque | Capacity | Dimensions |
|---|---|---|---|---|---|---|---|
| 31 kN | 102 mm | 9.2 kW | 15 rpm | 100.75:1 | 6,000 N·m | 60 m per drum | 4,175 × 1,802 × 3,550 mm |
Typical Applications
Shipboard hose handling · dockside transfer · offshore service equipment · coastal fluid-transfer systems
Engineering Note
The source alternates between “rope,” “cable” and “hose.” This page treats the reference machine as a hose reel. Hose pressure, bend radius, swivel rating, fluid compatibility, coating system and marine certification must be approved for the actual project.
Final selection must also define duty cycle, ambient conditions, guarding, emergency stopping, anchorage and applicable local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Project Configuration
Send the line type and diameter, working length, required pull, speed, duty cycle, power supply, control interface, environment and installation drawing.
