LYFOOCRANE MANUAL MARINE WINCHES

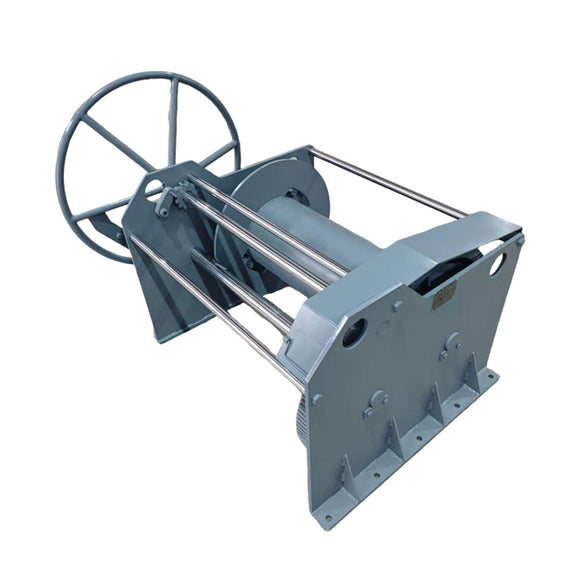

100 kN Manual Marine Pulling Winch with 150 m Rope Capacity
A large hand-operated winch with two-stage gearing, a high-capacity drum and ratchet braking for long-distance marine pulling duties.
Designed Around the Working Duty
A large hand-operated winch with two-stage gearing, a high-capacity drum and ratchet braking for long-distance marine pulling duties. Final gearing, drum, braking, controls and protection are configured for the project.
Mechanical advantage for manual operation.
Controlled input with reduced operator effort.
Load holding between operating strokes.
Long-rope storage for extended pulling.
Reference Specifications
| Published Capacity | Gear Ratio | Wire Rope | Rope Capacity | Net Weight | Dimensions |
|---|---|---|---|---|---|
| 100 kN | 56:1 | 36 mm | 150 m | 710 kg | 1,571 × 1,232 × 1,194 mm |
Typical Applications
Deck pulling · port maintenance · offshore support · field construction · equipment recovery
Engineering Note
100 kN is approximately 10.2 metric tonnes-force, not 100 tonnes. Published “lifting capacity” must be confirmed as rated line pull at a stated drum layer. Manual feasibility, brake capacity, rope factor of safety and structural anchorage require project verification.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
