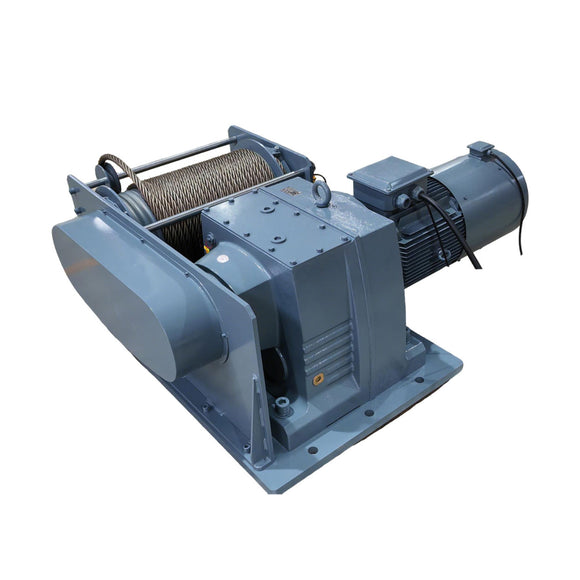

10,000 kg Industrial Winch with Controlled Rope Spooling
A VFD-driven pulling and lifting platform with a grooved drum, pressure roller and traveling guide pulley for more consistent wire-rope winding.
Engineered for the Application
A VFD-driven pulling and lifting platform with a grooved drum, pressure roller and traveling guide pulley for more consistent wire-rope winding. Final drum geometry, drive, controls and protection are configured around the actual cable, rope or hose system.
Smooth starting and adjustable operating speed.
Parallel-shaft transmission for a compact layout.
Helps retain the rope under changing tension.
Supports more orderly fleet movement.
Reference Specifications
| Rated Load | Motor | Rope Diameter | Drum Speed | Rope Speed | Dimensions |
|---|---|---|---|---|---|
| 10,000 kg | 30 kW | 24 mm | 16 rpm | 20 m/min | 1,653 × 1,330 × 773 mm |
Typical Applications
Vehicle test facilities · manufacturing lines · warehouse handling · machinery positioning · port equipment
Engineering Note
VFD speed regulation does not by itself provide precision positioning. Position accuracy requires encoder feedback, appropriate braking, control logic and a defined tolerance. The claimed 500–20,000 kg family range must be confirmed model by model.
Final selection must also define duty cycle, ambient conditions, guarding, emergency stopping, anchorage and applicable local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Project Configuration
Send the line type and diameter, working length, required pull, speed, duty cycle, power supply, control interface, environment and installation drawing.
