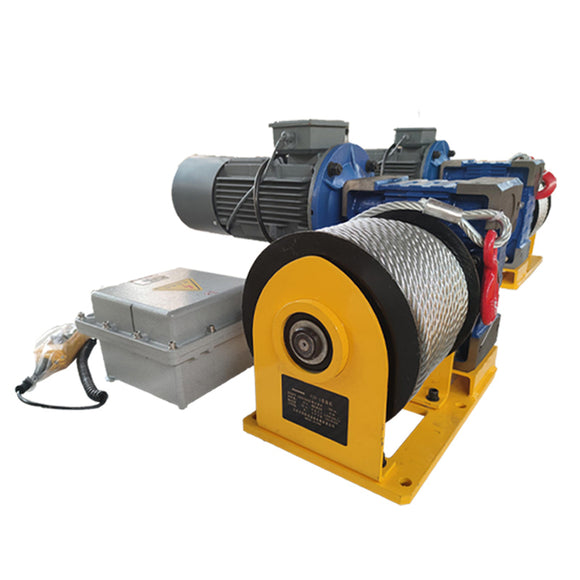

1,200 kg Marine Gangway Winch with Symmetrical Installation Options
A compact electric winch for raising and lowering vessel gangways, with an electromagnetic brake, worm reduction and left- or right-side installation layouts.
Designed Around the Working Duty
A compact electric winch for raising and lowering vessel gangways, with an electromagnetic brake, worm reduction and left- or right-side installation layouts. Final gearing, drum, braking, controls and protection are configured for the project.
Left- and right-side vessel installation.
Powered stopping and holding.
Compact high-ratio transmission.
Encoder and limits by project.
Reference Specifications
| Rated Load | Motor | Gear Ratio | Output Speed | Published Torque | Line Speed | Wire Rope | Dimensions |
|---|---|---|---|---|---|---|---|
| 1,200 kg | 1.2 kW | 100:1 | 10 rpm | 100 N·m | 6 m/min | 12 mm × 54 m | 532 × 663 × 522 mm |
Typical Applications
Cargo-vessel gangways · passenger-vessel access equipment · offshore platforms · tanker deck machinery
Engineering Note
A gangway can carry people, but this standard winch must not be marketed as personnel-lifting equipment without a certified complete gangway system. IP56 and explosion-protected enclosure claims apply only with matching documentation. Worm resistance is not an independent safety brake.
Final selection must define line pull by drum layer, rope specification, duty cycle, brake holding load, anchorage, corrosion system, guarding and applicable marine or local standards. Not intended for personnel lifting unless separately engineered and certified.
Request a LYFOOCRANE Configuration
Provide the operating purpose, required line pull, rope travel and diameter, speed, duty cycle, power or hydraulic supply, installation drawing and environment.
