LYFOOCRANE REDUNDANT-DRIVE WINCHES

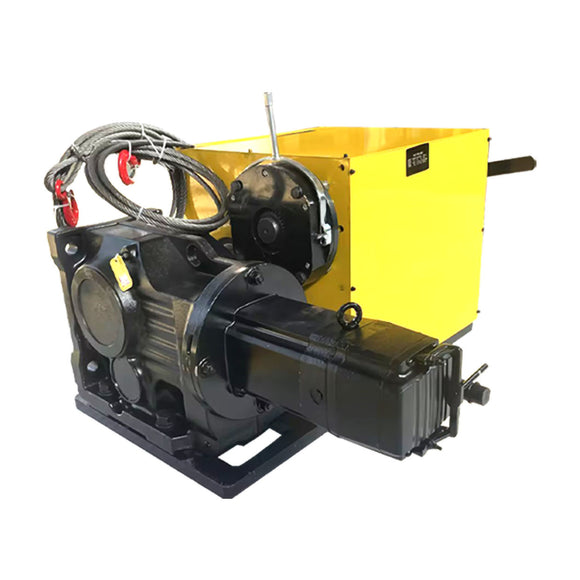

1,000 kg Dual-Rope Electric Winch with Manual Recovery Drive
A compact two-line winch combining powered operation, independent braking and manual emergency movement.
Powered Travel with a Mechanical Backup
An SEW geared motor drives two rope lines from a common assembly. Dual brakes provide load-holding redundancy, and a hand crank permits controlled recovery when the powered drive is unavailable. The brake-release and manual-drive procedure must be governed by a project-specific risk assessment.
Common-drive movement for paired suspension points.
Two holding devices with manual release.
Mechanical movement during power loss.
Integrated right-angle drive package.
Reference Specifications
| Capacity | Gearmotor | Supply | Ratio | Drum Speed | Max. Rope Speed | Output Torque |
|---|---|---|---|---|---|---|
| 1,000 kg | SEW 2.2 kW, K87 | 380 V / 50 Hz | 115.82:1 | 13 rpm | 10 m/min | 1,670 N·m |
| Rope Set | Drum Capacity | Rope Spacing | Lift Height | Hand Force | Weight | Dimensions |
|---|---|---|---|---|---|---|
| 2 × 20 m, 10 mm | 28 m | 191 mm | 10 m | 260 N | 300 kg | 760 × 745 × 506 mm |
Critical Application Note
A shared drive does not automatically assure equal rope position under unequal loads. Specify the allowable skew, rope path, feedback method and shutdown limits. This standard configuration is for materials handling—not people. Any personnel-carrying use requires a purpose-designed, independently certified system with compliant brakes, controls, rescue provisions and supporting structure.
Discuss a Redundant-Drive Configuration
Provide load distribution, travel, reeving, speed, manual-recovery scenario, required standards and mounting geometry.
