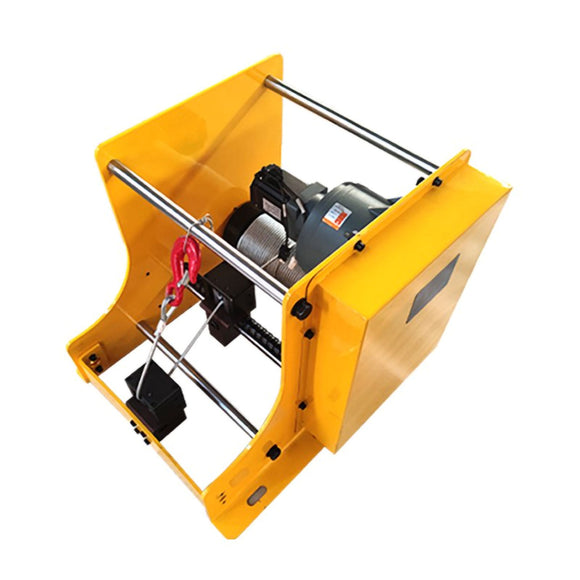

1,000 kg Closed-Loop Servo Winch for Laboratory Platforms
A PLC-controlled winch module for repeatable cable motion, automated cycling and instrumented research setups.
Programmable Cable Motion for Research
The integrated PLC and HMI support manual payout and retrieval, fixed-length commands and automatic cycles. Encoder feedback provides digital length and speed information, while a properly configured load-feedback loop can support tension-regulated operation.
Mode selection, commands and status display.
Digital length and motion measurement.
Repeatable payout and retrieval sequences.
Configurable I/O for test equipment.
1,000 kg Reference Model
| Capacity | Motor | Wire Rope | Drum Speed | Average Rope Speed | Dimensions |
|---|---|---|---|---|---|
| 1,000 kg | 0.75 kW | 6 mm × 82 m | 4.4 rpm | 1.6 m/min | 610 × 650 × 555 mm |
The figures above describe the published reference unit. Broader capacity and speed ranges mentioned in the source are not presented as specifications because they are not tied to a defined model.
Typical Research Uses
Materials testing · cable deployment studies · fatigue cycling · instrument positioning · teaching laboratories · automated test stands
Encoder counts must be converted using the effective drum diameter, which changes with rope layers. True constant-tension operation additionally requires calibrated force feedback. Laboratory use does not remove the need for guarding, limits and an emergency stop.
Configure a Winch for Your Test Protocol
Share the load range, motion profile, number of cycles, measurement accuracy, control interface and available installation space.
