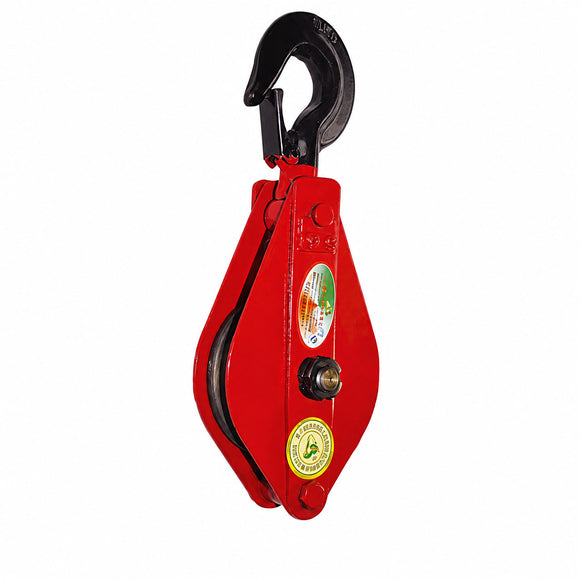

Single-sheave closed pulley block with lifting hook

This single-sheave closed pulley block is designed for wire-rope lifting and pulling applications. Its closed side-plate construction securely retains the wire rope, while the forged lifting hook provides a strong and reliable connection to the load.

Product Features

  • The lifting hook is drop-forged from high-quality alloy steel and designed with a 3:1 safety factor.
  • Available with cast-iron, cast-steel or hot-rolled steel sheaves.
  • Sheave bearing options include composite wear-resistant bushings, solid bronze bushings, ball bearings and needle bearings.
  • Additional working-load capacities can be manufactured to order.

Dimensions and Technical Specifications

Single-sheave closed hook pulley block dimensional drawing
Item No. WLL
(t)		 Test Load
(kN)		 Outside Dimensions (mm) Wire Rope Diameter (mm) Hook Opening Dimensions (mm) Weight
(kg)
H B Lmax Recommended Max. D O
SL-HQG1-0.32 0.32 5.12 230 90 48 4.4 4.7 28 ≤20 1.1
SL-HQG1-0.5 0.5 8 260 98 54 6.2 7.7 31.5 ≤22 1.61
SL-HQG1-1 1 16 318 116 63 7.7 11 37.5 ≤27 2.82
SL-HQG1-2 2 32 405 152 79 11 14 45 ≤32 5.48
SL-HQG1-3.2 3.2 51.2 470 176 90 12.5 15.5 50 ≤37 8.8
SL-HQG1-5 5 80 570 212 105 15.5 18.5 60 ≤42 14.2
SL-HQG1-8 8 128 730 280 125 20 23 75 ≤56 31
SL-HQG1-10 10 160 810 316 144 23 24.5 85 ≤61 40
SL-HQG1-16 16 224 1030 406 169 28 31 106 ≤81 95
SL-HQG1-20 20 280 1165 460 180 31 35 118 ≤90 130
SL-HQG1-32 32 448 1505 573 240 35 38 140 ≤106 290
SL-HQG1-50 50 800 1630 645 345 44 48 165 ≤118 570

WLL = Working Load Limit. All dimensions and technical values are based on the source product data.
