Electric Winches
A versatile range of electric winches with rated line pulls from 2,000 to 20,000 lb, developed for vehicle recovery, trailer loading, equipment positioning and general pulling applications.
Reliable Pulling Power for Light- to Heavy-Duty Work
The LYFOOCRANE electric winch range combines a compact structure, planetary gear transmission and an automatic load-holding brake. Multiple capacities are available for utility vehicles, trailers, workshops, off-road recovery and industrial pulling operations.
Models can be selected according to the required line pull, rope capacity, installation space and operating conditions.
Model Comparison
| Rated Line Pull | Motor Power | Gear Ratio | Wire Rope | Gear System | Overall Dimensions | Net Weight |
|---|---|---|---|---|---|---|
| 2,000 lb / 900 kg | 0.8 kW / 1.0 hp | 150:1 | Ø4 mm × 6 m | Planetary | 268 × 110 × 105 mm | 5.85 kg |
| 3,000 lb / 1,350 kg | 1.0 kW / 1.36 hp | 150:1 | Ø5 mm × 6 m | Planetary | 299 × 110 × 105 mm | 5.90 kg |
| 3,500 lb / 1,550 kg | 1.1 kW / 1.5 hp | 150:1 | Ø5 mm × 10 m | Planetary | 320 × 110 × 105 mm | 7.70 kg |
| 4,000 lb / 1,800 kg | 1.2 kW / 1.6 hp | 136:1 | Ø5 mm × 10 m | Planetary | 316 × 120 × 106 mm | 8.80 kg |

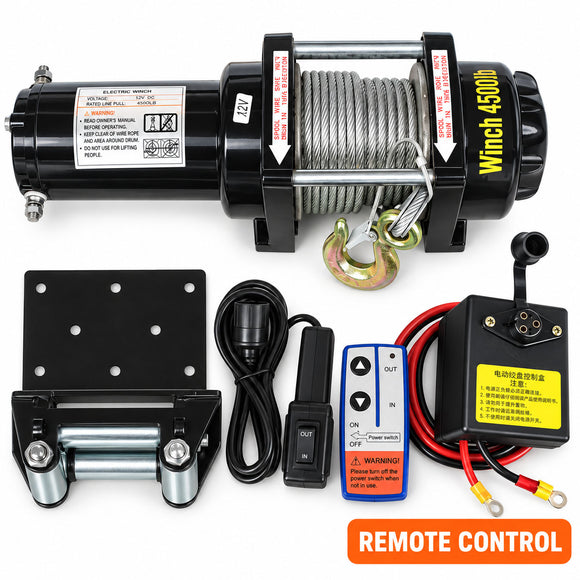

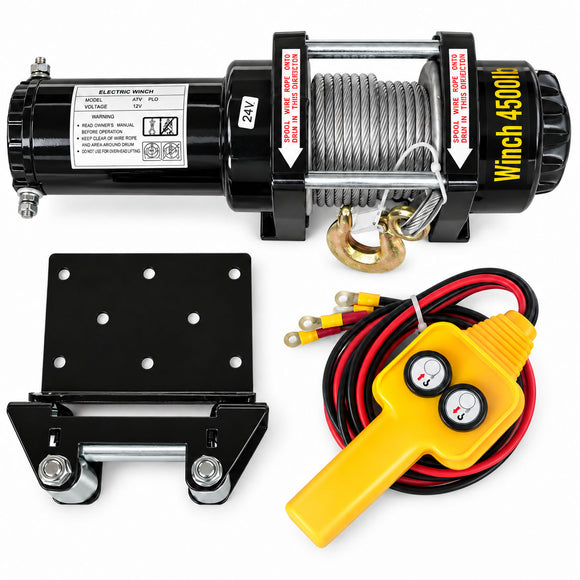

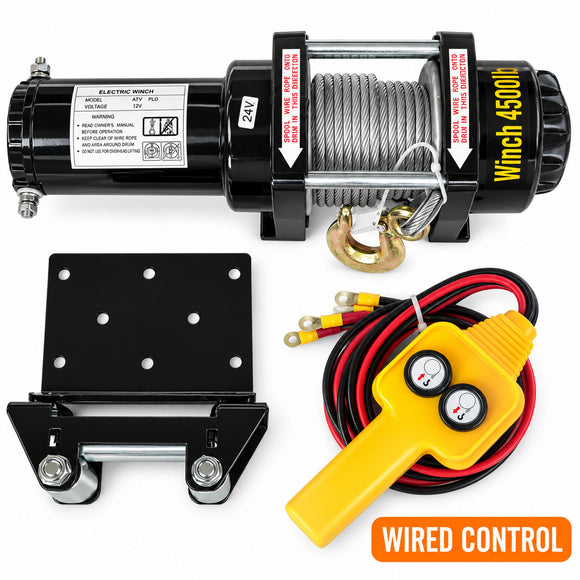

| 4,500 lb / 2,000 kg | 1.4 kW / 1.9 hp | 136:1 | Ø5 mm × 10 m | Planetary | 316 × 120 × 106 mm | 8.95 kg |
| 6,000 lb / 2,700 kg | 2.0 kW / 2.7 hp | 235:1 | Ø7 mm × 14 m | 3-stage planetary | 415 × 160 × 217 mm | 23.0 kg |
| 9,500 lb / 4,300 kg | 3.85 kW / 5.3 hp | 203:1 | Ø9 mm × 24 m | 3-stage planetary | 529 × 160 × 217 mm | 32.5 kg |
| 12,000 lb / 5,450 kg | 3.9 kW / 5.35 hp | 203:1 | Ø9 mm × 24 m | 3-stage planetary | 527 × 160 × 217 mm | 33.0 kg |
| 13,500 lb / 5,897 kg | 4.1 kW / 5.6 hp | 203:1 | Ø9 mm × 24 m | 3-stage planetary | 527 × 160 × 217 mm | 34.0 kg |
| 16,800 lb / 7,600 kg | 4.4 kW / 6.0 hp | 358:1 | Ø11 mm × 24 m | 3-stage planetary | 560 × 196 × 260 mm | 50.0 kg |
| 20,000 lb / 9,000 kg | 5.2 kW / 7.1 hp | 358:1 | Ø11 mm × 24 m | 3-stage planetary | 560 × 196 × 260 mm | 50.0 kg |
Choose the Right Series
Compact Series: 2,000–3,000 lb
Compact, lightweight models for small trailers, utility vehicles and light pulling tasks where installation space is limited.
Mid-Range Series: 3,500–4,500 lb
A balanced choice for ATVs, UTVs, workshops and medium-duty vehicle or equipment recovery.
Heavy-Duty Series: 6,000–13,500 lb
Three-stage planetary gearing and longer wire rope for trailers, off-road vehicles and demanding recovery work.
Industrial Series: 16,800–20,000 lb
High-capacity models for heavy vehicles, large equipment and industrial pulling applications.
