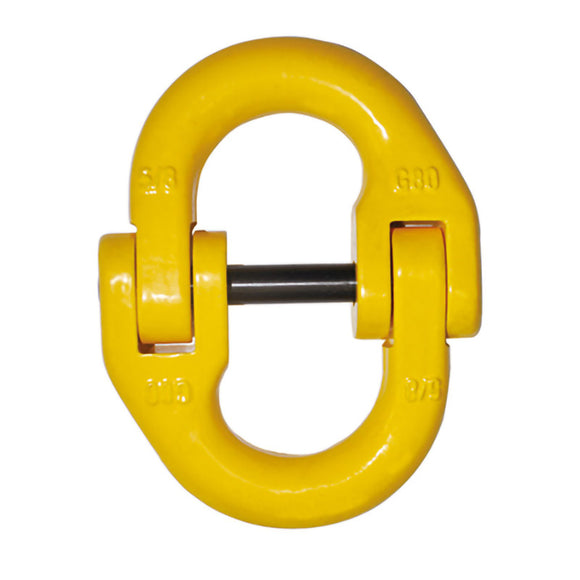

Grade 80 American-Type Connecting Link
Product Overview
The Grade 80 American-Type Connecting Link is designed for connecting compatible components within Grade 80 chain sling assemblies. The available models cover working load limits from 3,500 to 72,300 lb and are offered in sizes from 1/4 inch to 1-1/4 inches.
Technical Specifications
| Model | WLL (lb) |
Breaking Load (lb) |

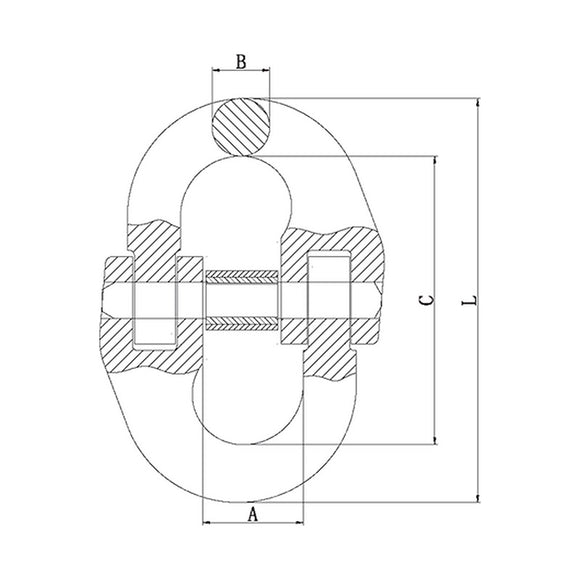

A (mm) |
B (mm) |
C (mm) |
L (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| SL-CT102-1/4 | 3,500 | 14,000 | 16.5 | 8 | 51 | 67 | 0.1 |
| SL-CT102-5/16 | 4,500 | 18,000 | 17 | 10 | 58.5 | 78.5 | 0.18 |
| SL-CT102-3/8 | 7,100 | 28,400 | 22 | 12 | 63.6 | 87.6 | 0.3 |
| SL-CT102-1/2 | 12,000 | 48,000 | 28.5 | 15 | 85.5 | 115.5 | 0.6 |
| SL-CT102-5/8 | 18,100 | 72,400 | 33 | 18.5 | 106 | 143 | 1.2 |
| SL-CT102-3/4 | 28,300 | 113,200 | 41 | 23 | 116 | 162 | 2 |
| SL-CT102-7/8 | 34,200 | 136,800 | 50.5 | 26 | 136.5 | 188.5 | 3.4 |
| SL-CT102-1 | 47,700 | 190,800 | 57 | 31 | 152.5 | 214.5 | 5 |
| SL-CT102-1-1/4 | 72,300 | 289,200 | 65 | 38 | 188.7 | 265 | 9.24 |
WLL = Working Load Limit. All dimensional values are in millimeters.
